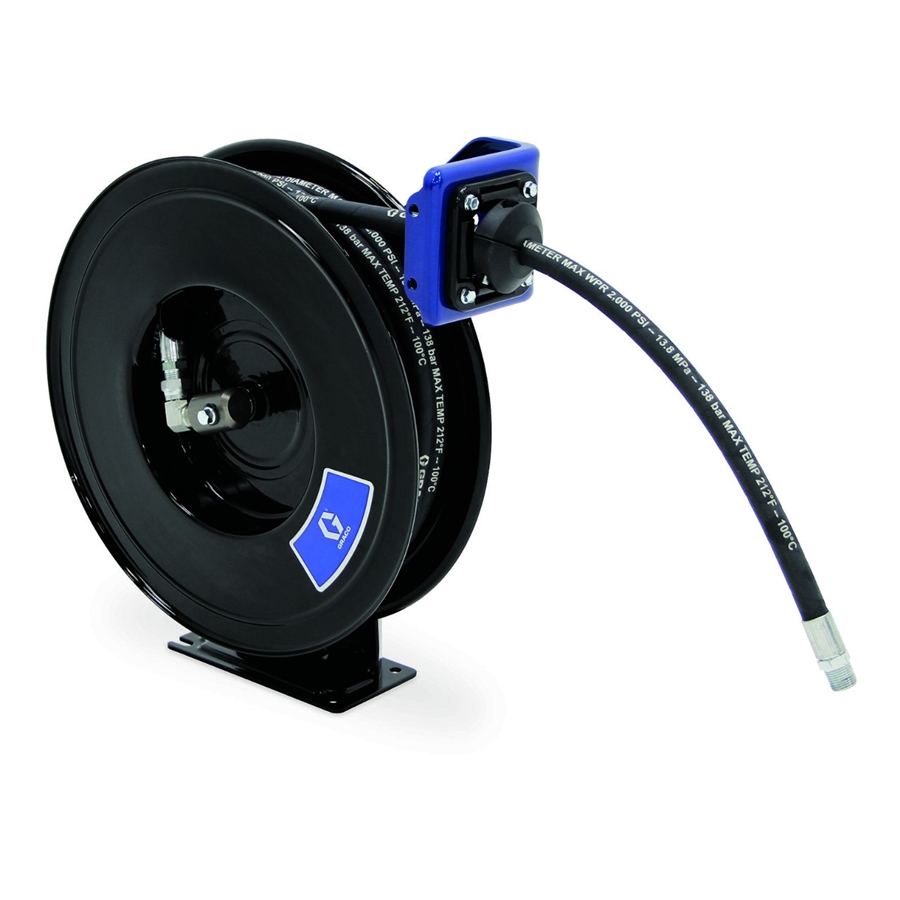

Choose Graco�s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it�s available in five colors

With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.

Previous Product # was HPL23B

ApplicationAir, Water, Antifreeze, WWS
ColorMetallic Blue
Frame TypeSingle Pedestal
Hose Inside Diameter (in)3/8
Hose Length (ft)50
Hose Reel TypeReel with Hose
Inlet Size (in)1/2
Inlet Thread GenderMale
Inlet Thread TypeNPSM
Maximum Temperature (�F)190
Maximum Working Pressure (psi)2000
Minimum Temperature (�F)-20
ModelSDX
Mount Location Overhead Mount
Outlet Size (in) 3/8
Outlet Thread Gender Male
Outlet Thread Type NPT
Overall Height (in)19.5
Overall Length (in)17.1
Overall Width (in)7
Recommended Environment: Indoor, Limited Outdoor
Recommended Fluid Type Air, Water, Antifreeze, WWS
Reel Thread Type
NPT
Series10
Type Spring-Rewind Reel
Wetted Parts Stainless Steel, Anodized Aluminum, Nitrile Rubber

Note: Freight charges for this product will be calculated after order is placed, and we will contact you with the amount. Please call if freight quote is desired before ordering.
